Arena supports and simplifies distributed TensorFlow Training(ps/worker mode).

  1. To run a distributed Tensorflow Training, you need to specify:

  2. GPUs of each worker (only for GPU workload)

  3. The number of workers (required)
  4. The number of PS (required)
  5. The docker image of worker (required)
  6. The docker image of PS (required)
  7. The Port of Worker (default is 22222)
  8. The Port of PS (default is 22223)

The following command is an example. In this example, it defines 2 workers and 1 PS, and each worker has 1 GPU. The source code of worker and PS are located in git, and the tensorboard are enabled.

# arena submit tf --name=tf-dist-git              \
              --gpus=1              \
              --workers=2              \
              --workerImage=tensorflow/tensorflow:1.5.0-devel-gpu  \
              --syncMode=git \
              --syncSource=https://github.com/cheyang/tensorflow-sample-code.git \
              --ps=1              \
              --psImage=tensorflow/tensorflow:1.5.0-devel   \
              --tensorboard \
              "python code/tensorflow-sample-code/tfjob/docker/v1alpha2/distributed-mnist/main.py --log_dir /training_logs"
configmap/tf-dist-git-tfjob created
configmap/tf-dist-git-tfjob labeled
service/tf-dist-git-tensorboard created
deployment.extensions/tf-dist-git-tensorboard created
tfjob.kubeflow.org/tf-dist-git created
INFO[0001] The Job tf-dist-git has been submitted successfully
INFO[0001] You can run `arena get tf-dist-git --type tfjob` to check the job status

2. Get the details of the specific job

# arena get tf-dist-git
NAME         STATUS   TRAINER  AGE  INSTANCE                            NODE
tf-dist-git  RUNNING  tfjob    55s  tf-dist-git-tfjob-594d59789c-lrfsk  192.168.1.119
tf-dist-git  RUNNING  tfjob    55s  tf-dist-git-tfjob-ps-0              192.168.1.118
tf-dist-git  RUNNING  tfjob    55s  tf-dist-git-tfjob-worker-0          192.168.1.119
tf-dist-git  RUNNING  tfjob    55s  tf-dist-git-tfjob-worker-1          192.168.1.120

Your tensorboard will be available on:
192.168.1.117:32298

3. Check the tensorboard

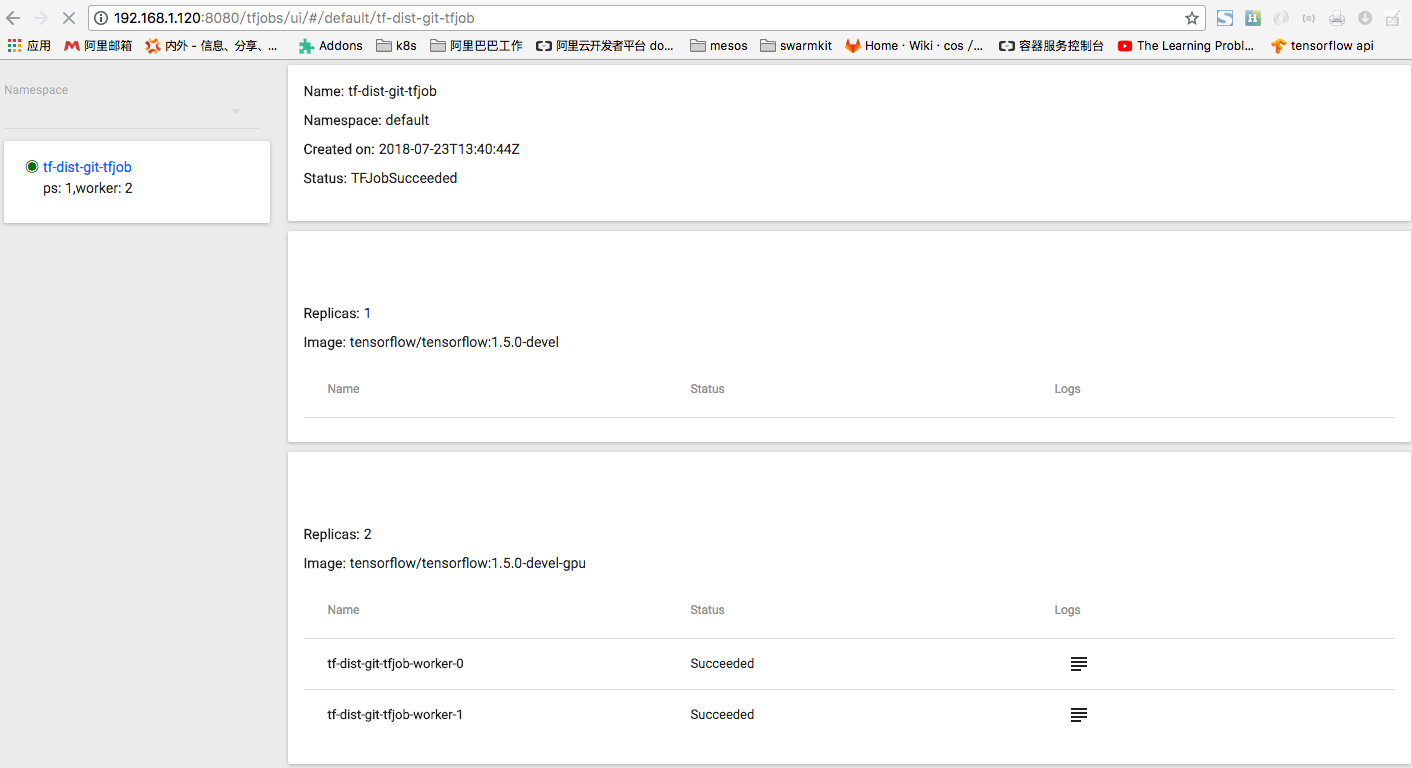

4. Get the TFJob dashboard

# arena logviewer tf-dist-git
Your LogViewer will be available on:
192.168.1.120:8080/tfjobs/ui/#/default/tf-dist-git-tfjob

Congratulations! You've run the distributed training job with arena successfully.
