这个示例展示了如何使用 Arena 进行机器学习模型训练。该示例将从 git url 下载源代码。
- 第一步是检查可用的GPU资源
arena top node
NAME IPADDRESS ROLE GPU(Total) GPU(Allocated)
i-j6c68vrtpvj708d9x6j0 192.168.1.116 master 0 0
i-j6c8ef8d9sqhsy950x7x 192.168.1.119 worker 1 0
i-j6c8ef8d9sqhsy950x7y 192.168.1.120 worker 1 0
i-j6c8ef8d9sqhsy950x7z 192.168.1.118 worker 1 0
i-j6ccue91mx9n2qav7qsm 192.168.1.115 master 0 0
i-j6ce09gzdig6cfcy1lwr 192.168.1.117 master 0 0
-----------------------------------------------------------------------------------------
Allocated/Total GPUs In Cluster:
0/3 (0%)
有 3 个包含 GPU 的可用节点用于运行训练作业。
2.现在，我们可以通过 arena 提交一个训练作业，本示例从 github 下载源代码
#arena submit tf \
--name=tf-git \
--gpus=1 \
--image=tensorflow/tensorflow:1.5.0-devel-gpu \
--syncMode=git \
--syncSource=https://github.com/cheyang/tensorflow-sample-code.git \
"python code/tensorflow-sample-code/tfjob/docker/mnist/main.py --max_steps 10000"
configmap/tf-git-tfjob created
configmap/tf-git-tfjob labeled
tfjob.kubeflow.org/tf-git created
INFO[0000] The Job tf-git has been submitted successfully
INFO[0000] You can run `arena get tf-git --type tfjob` to check the job status
这会下载源代码，并将其解压缩到工作目录的
code/目录。默认的工作目录是/root，您也可以使用--workingDir加以指定。如果您正在使用非公开 git 代码库，则可以使用以下命令：
#arena submit tf \
--name=tf-git \
--gpus=1 \
--image=tensorflow/tensorflow:1.5.0-devel-gpu \
--syncMode=git \
--syncSource=https://github.com/cheyang/tensorflow-sample-code.git \
--env=GIT_SYNC_USERNAME=yourname \
--env=GIT_SYNC_PASSWORD=yourpwd \
"python code/tensorflow-sample-code/tfjob/docker/mnist/main.py"
注意：arena 使用 git-sync 来同步源代码。您可以设置在 git-sync 项目中定义的环境变量。
3.列出所有作业
#arena list
NAME STATUS TRAINER AGE NODE
tf-git RUNNING tfjob 0s 192.168.1.120
4.检查作业所使用的GPU资源
#arena top job
NAME STATUS TRAINER AGE NODE GPU(Requests) GPU(Allocated)
tf-git RUNNING TFJOB 17s 192.168.1.120 1 1
Total Allocated GPUs of Training Job:
1
Total Requested GPUs of Training Job:
1
5.检查集群所使用的GPU资源
#arena top node
NAME IPADDRESS ROLE GPU(Total) GPU(Allocated)
i-j6c68vrtpvj708d9x6j0 192.168.1.116 master 0 0
i-j6c8ef8d9sqhsy950x7x 192.168.1.119 worker 1 0
i-j6c8ef8d9sqhsy950x7y 192.168.1.120 worker 1 1
i-j6c8ef8d9sqhsy950x7z 192.168.1.118 worker 1 0
i-j6ccue91mx9n2qav7qsm 192.168.1.115 master 0 0
i-j6ce09gzdig6cfcy1lwr 192.168.1.117 master 0 0
-----------------------------------------------------------------------------------------
Allocated/Total GPUs In Cluster:
1/3 (33%)
6.获取特定作业的详细信息
#arena get tf-git
NAME STATUS TRAINER AGE INSTANCE NODE
tf-git RUNNING TFJOB 5s tf-git-tfjob-worker-0 192.168.1.120
7.检查日志
#arena logs tf-git
2018-07-22T23:56:20.841129509Z WARNING:tensorflow:From code/tensorflow-sample-code/tfjob/docker/mnist/main.py:119: softmax_cross_entropy_with_logits (from tensorflow.python.ops.nn_ops) is deprecated and will be removed in a future version.
2018-07-22T23:56:20.841211064Z Instructions for updating:
2018-07-22T23:56:20.841217002Z
2018-07-22T23:56:20.841221287Z Future major versions of TensorFlow will allow gradients to flow
2018-07-22T23:56:20.841225581Z into the labels input on backprop by default.
2018-07-22T23:56:20.841229492Z
...
2018-07-22T23:57:11.842929868Z Accuracy at step 920: 0.967
2018-07-22T23:57:11.842933859Z Accuracy at step 930: 0.9646
2018-07-22T23:57:11.842937832Z Accuracy at step 940: 0.967
2018-07-22T23:57:11.842941362Z Accuracy at step 950: 0.9674
2018-07-22T23:57:11.842945487Z Accuracy at step 960: 0.9693
2018-07-22T23:57:11.842949067Z Accuracy at step 970: 0.9687
2018-07-22T23:57:11.842952818Z Accuracy at step 980: 0.9688
2018-07-22T23:57:11.842956775Z Accuracy at step 990: 0.9649
2018-07-22T23:57:11.842961076Z Adding run metadata for 999

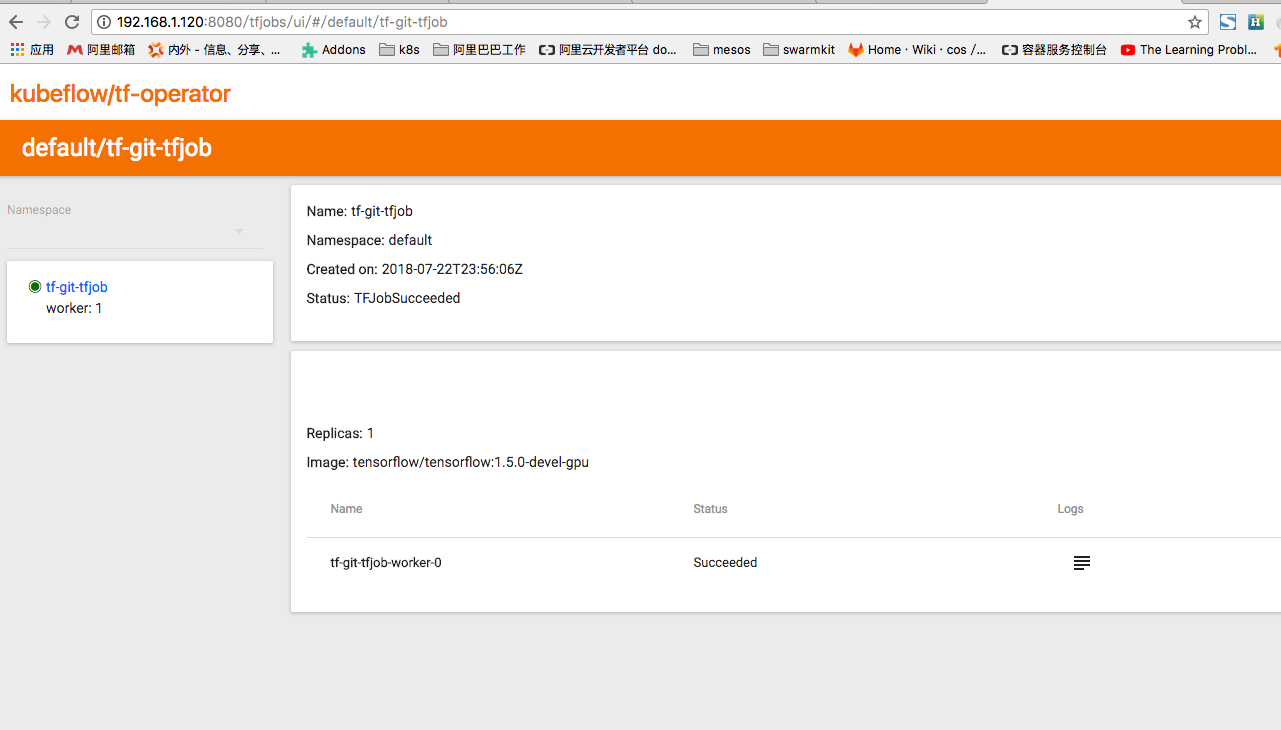

8.日志查看器中有关训练作业的更多信息
#arena logviewer tf-git
Your LogViewer will be available on:
192.168.1.120:8080/tfjobs/ui/#/default/tf-git-tfjob
恭喜！您已经成功使用 arena 完成了第一项训练作业。
