这个示例展示了如何使用 Arena 进行机器学习模型训练。它会从 git url 下载源代码，并使用 Tensorboard 可视化 Tensorflow 训练状态。

1. 第一步是检查可用资源

arena top node
NAME IPADDRESS ROLE GPU(Total) GPU(Allocated)
i-j6c68vrtpvj708d9x6j0 192.168.1.116 master 0 0
i-j6c8ef8d9sqhsy950x7x 192.168.1.119 worker 1 0
i-j6c8ef8d9sqhsy950x7y 192.168.1.120 worker 1 0
i-j6c8ef8d9sqhsy950x7z 192.168.1.118 worker 1 0
i-j6ccue91mx9n2qav7qsm 192.168.1.115 master 0 0
i-j6ce09gzdig6cfcy1lwr 192.168.1.117 master 0 0
-----------------------------------------------------------------------------------------
Allocated/Total GPUs In Cluster:
0/3 (0%)

有 3 个带有 GPU 的可用节点用于运行训练作业。

2.现在，我们可以通过 arena submit 提交一个训练作业，这会从 github 下载源代码

#arena submit tf \
             --name=tf-tensorboard \
             --gpus=1 \
             --image=tensorflow/tensorflow:1.5.0-devel-gpu \
             --env=TEST_TMPDIR=code/tensorflow-sample-code/ \
             --syncMode=git \
             --syncSource=https://github.com/cheyang/tensorflow-sample-code.git \
             --tensorboard \
             --logdir=/training_logs \
             "python code/tensorflow-sample-code/tfjob/docker/mnist/main.py --max_steps 5000"
configmap/tf-tensorboard-tfjob created
configmap/tf-tensorboard-tfjob labeled
service/tf-tensorboard-tensorboard created
deployment.extensions/tf-tensorboard-tensorboard created
tfjob.kubeflow.org/tf-tensorboard created
INFO[0001] The Job tf-tensorboard has been submitted successfully
INFO[0001] You can run `arena get tf-tensorboard --type tfjob` to check the job status

这会下载源代码，并将其解压缩到工作目录的 code/ 目录。默认的工作目录是 /root，您也可以使用 --workingDir 加以指定。

logdir 指示 Tensorboard 在何处读取 TensorFlow 的事件日志

3.列出所有作业

#arena list
NAME STATUS TRAINER AGE NODE
tf-tensorboard RUNNING TFJOB 0s 192.168.1.119

4.检查作业所使用的GPU资源

#arena top job
NAME STATUS TRAINER AGE NODE GPU(Requests) GPU(Allocated)
tf-tensorboard RUNNING TFJOB 26s 192.168.1.119 1 1


Total Allocated GPUs of Training Job:
0

Total Requested GPUs of Training Job:
1

5.检查集群所使用的GPU资源

#arena top node
NAME IPADDRESS ROLE GPU(Total) GPU(Allocated)
i-j6c68vrtpvj708d9x6j0 192.168.1.116 master 0 0
i-j6c8ef8d9sqhsy950x7x 192.168.1.119 worker 1 1
i-j6c8ef8d9sqhsy950x7y 192.168.1.120 worker 1 0
i-j6c8ef8d9sqhsy950x7z 192.168.1.118 worker 1 0
i-j6ccue91mx9n2qav7qsm 192.168.1.115 master 0 0
i-j6ce09gzdig6cfcy1lwr 192.168.1.117 master 0 0
-----------------------------------------------------------------------------------------
Allocated/Total GPUs In Cluster:
1/3 (33%)

6.获取特定作业的详细信息

#arena get tf-tensorboard
NAME STATUS TRAINER AGE INSTANCE NODE
tf-tensorboard RUNNING tfjob 15s tf-tensorboard-tfjob-586fcf4d6f-vtlxv 192.168.1.119
tf-tensorboard RUNNING tfjob 15s tf-tensorboard-tfjob-worker-0 192.168.1.119

Your tensorboard will be available on:
192.168.1.117:30670

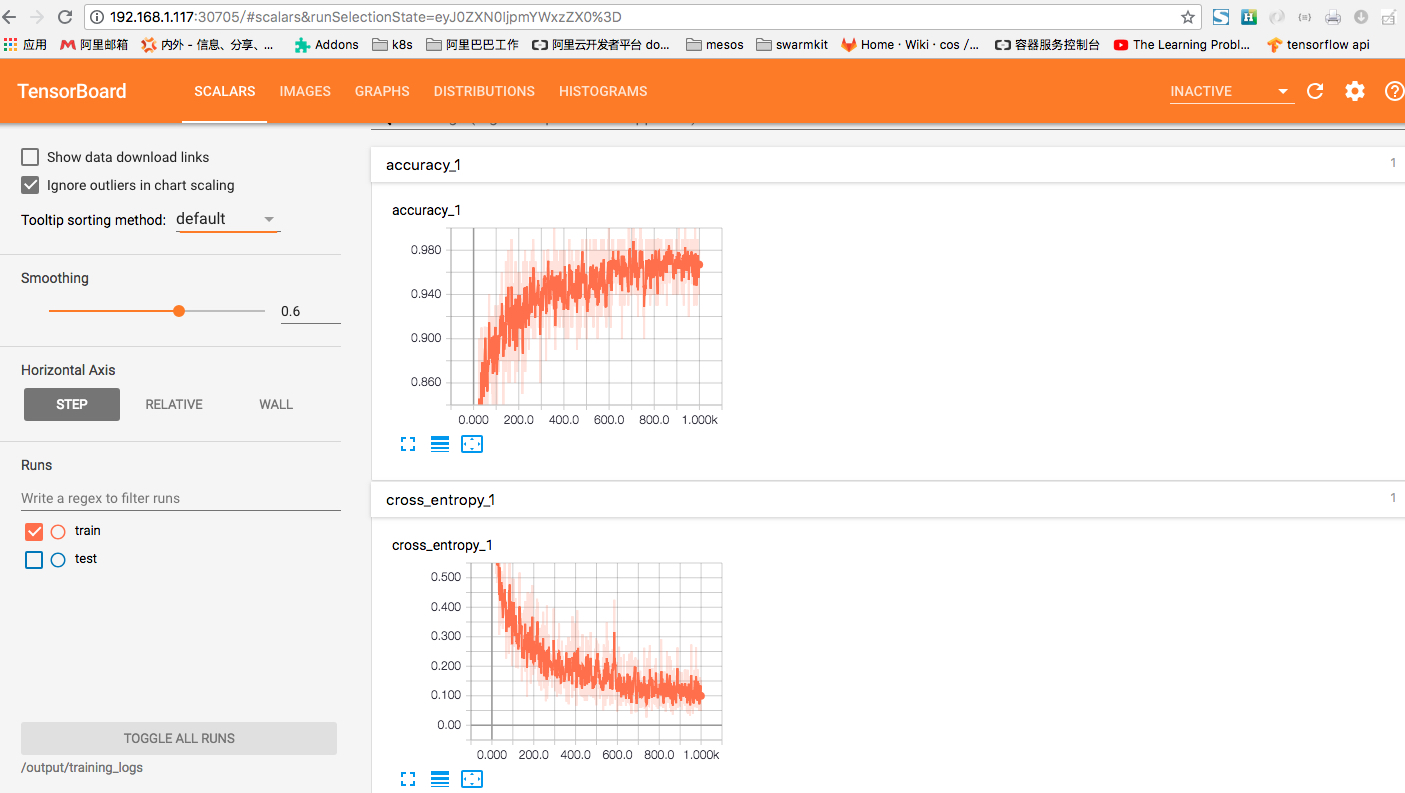

注意：您可以使用 192.168.1.117:30670 访问 Tensorboard。如果您通过笔记本电脑无法直接访问 Tensorboard，则可以考虑使用 sshuttle。例如：sshuttle -r root@47.89.59.51 192.168.0.0/16

恭喜！您已经使用 arena 成功运行了训练作业，而且还能轻松检查 Tensorboard。
